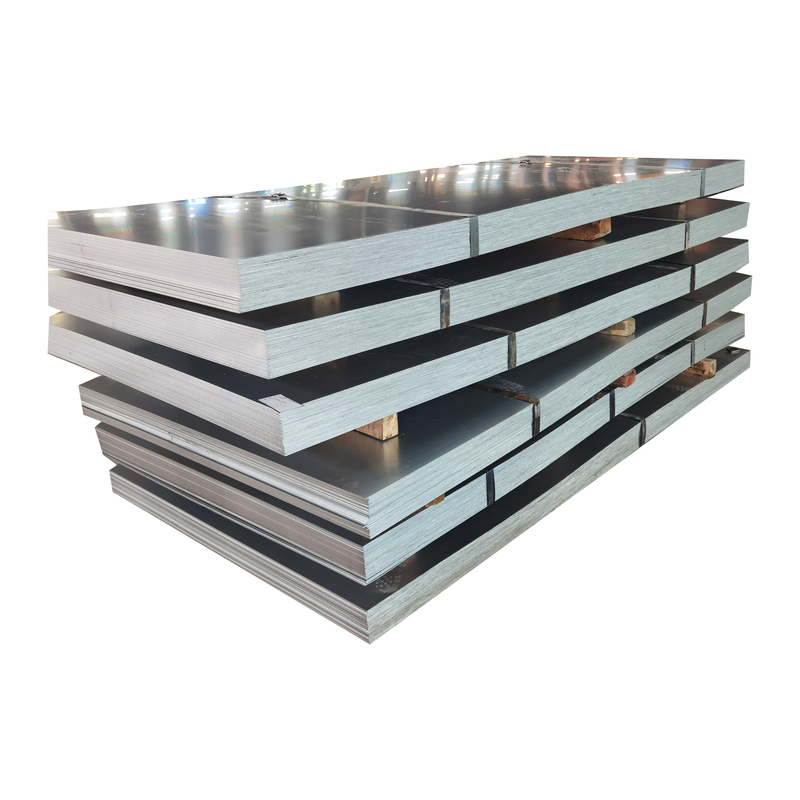

The advantages of aluminum sheet include its tensile strength and shear strength. Tensile strength can exceed 50,000 psi, which makes it ideal for the aerospace industry and other industries where such strength is important. Its fatigue resistance also makes it more durable than most other types of materials.
The machinability of 2024 aluminum sheet is another benefit. It can be formed to the exact shape, size and dimensions required. The high speed machining of this product produces precise results.
2024 aluminum sheet does not provide good corrosion resistance when welded. The heat caused by the welding process can degrade the aluminum sheet, thus weakening its properties. If welding is necessary, it is recommended that only spot welds be made to the aluminum sheet to maintain as much of the original integrity as possible.
| Aluminum alloy model | 2024 Aluminum Plate |
| Material state that can be produced | O, T3, T4, T6, T72, T81, T361, T351, T861, T3511, T8611 |
| Thickness（mm） | 1.0-600 |
| Width（mm） | 800-2650 |
| Length（mm） | 500-16000 |
| Typical product | Moulds, high-strength parts, etc. |
ASTM B209 Aluminium Alloy 2024 Plate
Aluminium 2024 Sheet/Plate
2024 Aluminium Alloys Tread Plate
2024 Aluminium Diamond Plate
DIN 3.1355 Aluminium Rolls
SB209 Aluminium 2024 CR Coil
Aluminium 2024 HR Coil Supplier
Aluminium 2024 Strips
Aluminium Alloys 2024 Blank
2024 Aluminium Flat Sheets
Aluminium 2024 Rings Exporter
ASME SB209 Aluminium Alloy 2024 Foils
Aluminium 2024 Circle Manufacturer
ASTM B209 Aluminium 2024 Sheet
| Grade | Al | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Other |
| min. | Bal | 3.8 | 0.3 | 1.2 | ||||||
| max. | Bal | 0.5 | 0.5 | 4.9 | 0.9 | 1.8 | 0.1 | 0.25 | 0.15 | 0.05 |
| Temper | Tensile Strength | Yield Strength | Elongation |
| KSI | KSI | % | |
| (annealed) | 32 | 14 | 12 |
| T3 | 63 | 42 | 15 |
2000 series aluminum alloy is characterized by high strength, so it is commonly called hard aluminum alloy, good heat resistance and processing performance, but the corrosion resistance is not as good as other aluminum alloys, and intergranular corrosion will occur under certain conditions, therefore, 2000 series aluminum plate often needs to be coated with a layer of pure aluminum, or a layer of 6000 series aluminum alloy with electrochemical protection on the core plate to greatly improve its corrosion resistance. al-Cu-Mg -Fe-Ni alloy has a complex chemical composition, it has high strength at high temperatures and good process performance, it is mainly used as heat-resistant parts forged at 150 to 250℃. Al-Cu-Mg alloy at room temperature is lower than the strength of Al-Cu-Mg alloy 2 a12 and 2024 aluminum plate, but at 225 ~ 250 ℃ or higher temperature, the strength is higher than them, and the alloy has good process properties, easy to weld, mainly used for welding structural parts and forgings. 2000 series alloys are widely used in aviation and aerospace.
Fast delivery time, good quality and reasonable price
We can process different finished products according to your requirements
High production capacity will shorten your waiting time
Accepting buyer's specification
Experienced R&D department
For more details about our products, please contact our sales for more information. Thank you for visiting
