Aluminum 2036 is a 2000 series aluminum alloy: the primary alloy additive is copper, and it is a mature product for initial formation. The referenced properties are suitable for T4 tempering. To achieve this tempering, the metal solution is heat treated and naturally aged. 2036 is designated by the Aluminum Association (AA) for this material. In European standards, it will be named EN AW-2036. in addition, the UNS number is A92036. it was originally given the standard name in 1970.
Alloy 2036 is a heat treatable deformable alloy. It is a high strength forged alloy with copper as the main alloying element.

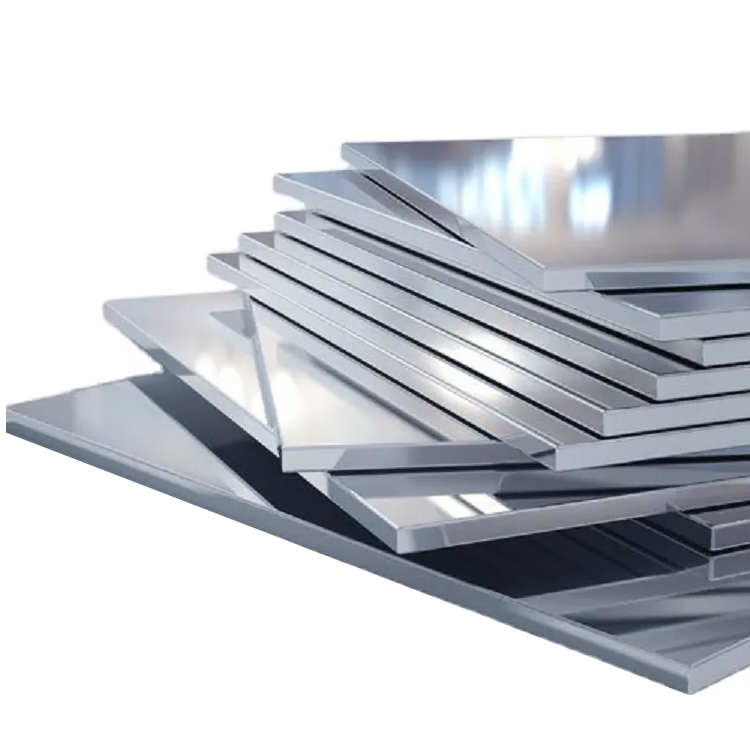

| Product | 2036 Aluminum Sheet Plate |
| Temper | O,H12,H14,H16,H18,H19,H22,H24,H26,H28,H32,H34,H36,H38 |
| Grade | 1000series：1050/1060/1070/1080/1100/1350/1050A/1090/1200/1530 |
| 2000series：2011/2014/2017/2024/2017A/2017B/2020/2020R/2040/2040A/2080/2080W/2018A/2018B | |
| 3000series：3002/3003/3104/3204/3030/3030A/3030GA/3030/3030GE/3060/3030R/3060G/3090G/3090 | |
| 5000series：5005/5025/5052/5040/5054/5056/5083/5152/5A05 | |
| 6000series：6101/6003/6061/6063/6020/6201/6262/6082/6060G/6060/6060W/6060R/6090A/6090/6090C | |
| 7000series：7003/7005/7050/7075/7075-T6/7050-T651/7001/7004/7051/7076/7079/7090 | |
| 8000series：8011/8011A | |
| Thickness | 1.5-400mm |
| Width | 100-2200mm |
| Length | 500-10000mm |
| Service | Perforated, Cutting special size, Doing flatness, Surface treatment,etc |
| Executive Standard | GB/DIN/ANSI/BS/JIS/ASTM/BS |
| Certificate | SGS/BV/MTC/IOS/CE |
| Delivery time | 7-15 days after deposit |
| Packaging Details | Standard export package |
| One 20GP container can load about 18-20 tons Aluminium Sheet | |
| One 40GP container can load about 24 tons Aluminium Sheet |
| Element | Content (%) |
| Aluminum, Al | 96.7 |
| Copper, Cu | 2.6 |
| Magnesium, Mg | 0.45 |
| Manganese, Mn | 0.25 |
| Properties | Metric | Imperial |
| Tensile strength | 338 MPa | 49000 psi |
| Yield strength | 193 MPa | 28000 psi |
| Elongation at break (@thickness 1.59mm- 0.0625 in) | 24% | 24% |
| Poisson’s ratio | 0.33 | 0.33 |
| Elastic modulus | 71 GPa | 10300 ksi |
| Shear strength | 200 MPa | 29000 psi |
| Hardness, Brinell (converted from HR 15T) | 95 | 95 |
| Hardness, Knoop (converted from HR 15T) | 120 | 120 |
| Hardness, Rockwell A (converted from HR 15T) | 39.8 | 39.8 |
| Hardness, Rockwell B (converted from HR 15T) | 60 | 60 |
| Hardness, Rockwell 15T | 80 | 80 |
| Hardness, Vickers (converted from HR 15T) | 107 | 107 |
| Machinability | 50 | 50 |
(1)Fast delivery time, good quality and reasonable price
(2) We can process different finished products according to your requirements
(3) High production capacity will shorten your waiting time
(4) Accepting buyer's specification
(5) Experienced R&D department
For more details about our products, please contact our sales for more information. Thank you for visiting
