6262 aluminum alloy is an alloy in the forged aluminum-magnesium-silicon family (6000 or 6xxx series). It is related to the 6162 aluminum alloy (the Alcoa name differs only in the second digit and is a variant of the same alloy), but sees more widespread use. It differs from 6162, and most other aluminum alloys, in that it contains lead in its alloy composition. It is usually formed by extrusion, forging or rolling, but as a wrought alloy, it is not used for casting. It can also be clad, but this is not a common practice for this alloy. It cannot be work hardened, but is usually heat treated to produce temperatures with higher strength but lower ductility.

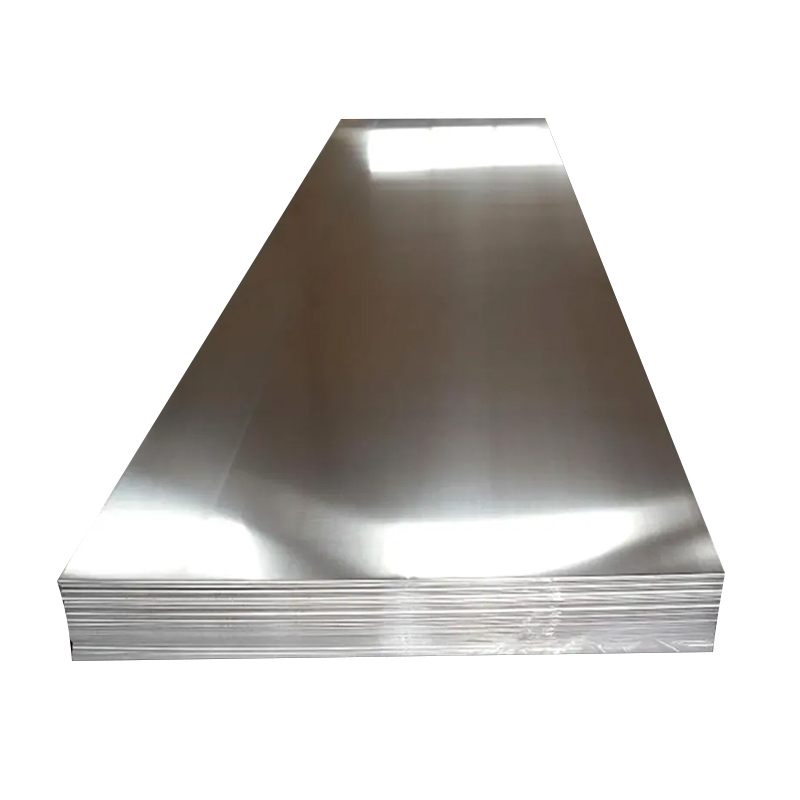

| Product | 6262 Aluminum Sheet Plate |
| Temper | T9,T6,T8,T6511 |
| Grade | 1000series：1050/1060/1070/1080/1100/1350/1050A/1090/1200/1530 |
| 2000series：2011/2014/2017/2024/2017A/2017B/2020/2020R/2040/2040A/2080/2080W/2018A/2018B | |
| 3000series：3002/3003/3104/3204/3030/3030A/3030GA/3030/3030GE/3060/3030R/3060G/3090G/3090 | |
| 5000series：5005/5025/5052/5040/5054/5056/5083/5152/5A05 | |
| 6000series：6101/6003/6061/6063/6020/6201/6262/6082/6060G/6060/6060W/6060R/6090A/6090/6090C | |
| 7000series：7003/7005/7050/7075/7075-T6/7050-T651/7001/7004/7051/7076/7079/7090 | |
| 8000series：8011/8011A | |
| Thickness | 1.5-400mm |
| Width | 100-2200mm |
| Length | 500-10000mm |
| Service | Perforated, Cutting special size, Doing flatness, Surface treatment,etc |
| Executive Standard | GB/DIN/ANSI/BS/JIS/ASTM/BS |
| Certificate | SGS/BV/MTC/IOS/CE |
| Delivery time | 7-15 days after deposit |
| Packaging Details | Standard export package |
| One 20GP container can load about 18-20 tons Aluminium Sheet | |
| One 40GP container can load about 24 tons Aluminium Sheet |
| Chemical Elements | Metric | English | Comments |
| Aluminum, Al | 94.6 - 97.8 % | 94.6 - 97.8 % | As remainder |
| Chromium, Cr | 0.04 - 0.14 % | 0.04 - 0.14 % | |
| Copper, Cu | 0.15 - 0.40 % | 0.15 - 0.40 % | |
| Iron, Fe | <= 0.70 % | <= 0.70 % | |
| Lead, Pb | 0.40 - 0.70 % | 0.40 - 0.70 % | |
| Magnesium, Mg | 0.80 - 1.2 % | 0.80 - 1.2 % | |
| Manganese, Mn | <= 0.15 % | <= 0.15 % | |
| Other, each | <= 0.05 % | <= 0.05 % | |
| Other, total | <= 0.15 % | <= 0.15 % | |
| Silicon, Si | 0.40 - 0.80 % | 0.40 - 0.80 % | |
| Titanium, Ti | <= 0.15 % | <= 0.15 % | |
| Zinc, Zn | <= 0.25 % | <= 0.25 % |
| Mechanical Properties | Metric | English | Comments |
| Hardness, Brinell | 103 | 103 | 500 kg load/10 mm ball |
| Hardness, Knoop | 129 | 129 | Estimated from Brinell |
| Hardness, Rockwell A | 42 | 42 | Estimated from Brinell |
| Hardness, Rockwell B | 65 | 65 | Estimated from Brinell |
| Hardness, Vickers | 116 | 116 | Estimated from Brinell |
| Tensile Strength, Ultimate | >= 310 MPa | >= 45000 psi | |
| Tensile Strength, Yield | >= 296 MPa | >= 42900 psi | |
| Elongation at Break | 12% | 12% | |
| Modulus of Elasticity | 69.0 GPa | 10000 ksi | Average of Tension and Compression. In Al alloys, the compressive modulus is typically 2% greater than the tensile modulus |
| Poissons Ratio | 0.33 | 0.33 | Estimated from trends in similar Al alloys. |
| Machinability | 70% | 70% | 0-100 Scale (A=90; B=70; C=50; D=30; E=10) |
| Shear Modulus | 26.0 GPa | 3770 ksi | Estimated from similar Al alloys. |
| Shear Strength | 185 MPa | 26800 psi | Estimated from ultimate tensile strength |
(1)Fast delivery time, good quality and reasonable price
(2) We can process different finished products according to your requirements
(3) High production capacity will shorten your waiting time
(4) Accepting buyer's specification
(5) Experienced R&D department
For more details about our products, please contact our sales for more information. Thank you for visiting
