6463 aluminum alloy is a medium strength alloy. Often referred to as a decorative alloy, this use can be enhanced by chemical brightening. 6463 aluminum alloy is an aluminum alloy in the forged aluminum-magnesium-silicon family (6000 or 6xxx series). It is related to 6063 aluminum alloy (Aluminum Association names that differ only in the second digit are variations of the same alloy), but unlike 6063, it is not usually formed using any process other than extrusion. It is usually heat treated to produce a higher strength but lower ductility temperature. Like 6063, it is often used in construction applications.

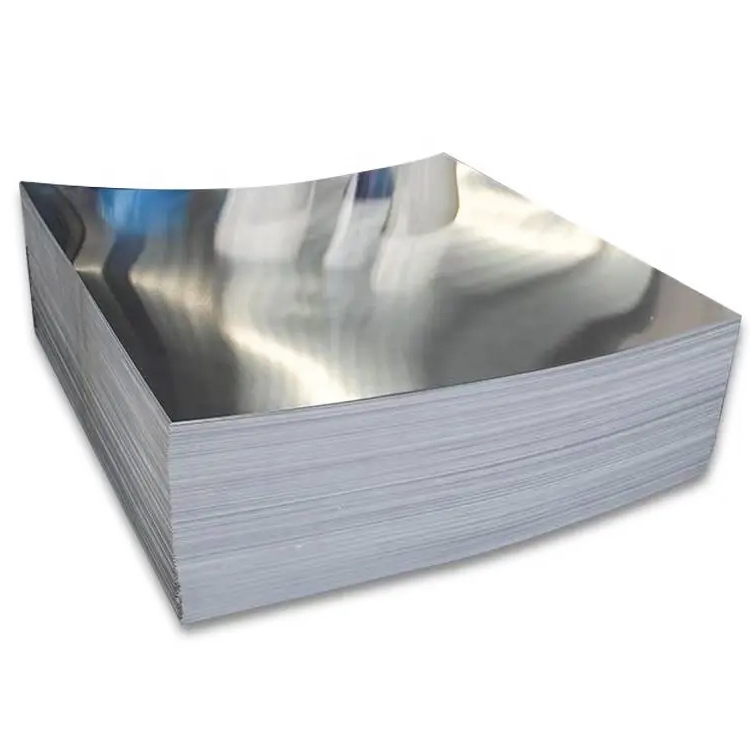

| Product | 6463 Aluminum Sheet Plate |
| Temper | O,H12,H14,H16,H18,H19,H22,H24,H26,H28,H32,H34,H36,H38 |
| Grade | 1000series：1050/1060/1070/1080/1100/1350/1050A/1090/1200/1530 |
| 2000series：2011/2014/2017/2024/2017A/2017B/2020/2020R/2040/2040A/2080/2080W/2018A/2018B | |
| 3000series：3002/3003/3104/3204/3030/3030A/3030GA/3030/3030GE/3060/3030R/3060G/3090G/3090 | |
| 5000series：5005/5025/5052/5040/5054/5056/5083/5152/5A05 | |
| 6000series：6101/6003/6061/6063/6020/6201/6262/6082/6060G/6060/6060W/6060R/6090A/6090/6090C | |
| 7000series：7003/7005/7050/7075/7075-T6/7050-T651/7001/7004/7051/7076/7079/7090 | |
| 8000series：8011/8011A | |
| Thickness | 1.5-400mm |
| Width | 100-2200mm |
| Length | 500-10000mm |
| Service | Perforated, Cutting special size, Doing flatness, Surface treatment,etc |
| Executive Standard | GB/DIN/ANSI/BS/JIS/ASTM/BS |
| Certificate | SGS/BV/MTC/IOS/CE |
| Delivery time | 7-15 days after deposit |
| Packaging Details | Standard export package |
| One 20GP container can load about 18-20 tons Aluminium Sheet | |
| One 40GP container can load about 24 tons Aluminium Sheet |
| Chemical Elements | Metric | English |
| Aluminum, Al | <= 97.9 % | <= 97.9 % |
| Copper, Cu | <= 0.20 % | <= 0.20 % |
| Iron, Fe | <= 0.15 % | <= 0.15 % |
| Magnesium, Mg | 0.45 - 0.90 % | 0.45 - 0.90 % |
| Manganese, Mn | <= 0.05 % | <= 0.05 % |
| Other, each | <= 0.05 % | <= 0.05 % |
| Other, total | <= 0.15 % | <= 0.15 % |
| Silicon, Si | 0.20 - 0.60 % | 0.20 - 0.60 % |
| Zinc, Zn | <= 0.05 % | <= 0.05 % |
| Mechanical Properties | Metric | English | Comments |
| Hardness, Brinell | 60 | 60 | AA; Typical; 500 g load; 10 mm ball |
| Hardness, Knoop | 80 | 80 | Converted from Brinell Hardness Value |
| Hardness, Vickers | 68 | 68 | Converted from Brinell Hardness Value |
| Tensile Strength, Ultimate | 186 MPa | 27000 psi | AA; Typical |
| Tensile Strength, Yield | 145 MPa | 21000 psi | AA; Typical |
| Elongation at Break | 12% | 12% | AA; Typical |
| @Thickness 1.59 mm | @Thickness 0.0625 in | ||
| Modulus of Elasticity | 68.9 GPa | 10000 ksi | AA; Typical; Average of tension and compression. Compression modulus is about 2% greater than tensile modulus. |
| Poissons Ratio | 0.33 | 0.33 | Estimated from trends in similar Al alloys. |
| Fatigue Strength | 68.9 MPa | 10000 psi | completely reversed stress; RR Moore machine/specimen |
| @# of Cycles 5.00e+8 | @# of Cycles 5.00e+8 | ||
| Shear Modulus | 26.0 GPa | 3770 ksi | Estimated from similar Al alloys. |
| Shear Strength | 117 MPa | 17000 psi | AA; Typical |
| Electrical Properties | Metric | English | Comments |
| Electrical Resistivity | 0.00000316 ohm-cm | 0.00000316 ohm-cm | AA; Typical |
| @Temperature 20.0 °C | @Temperature 68.0 °F | ||
(1)Fast delivery time, good quality and reasonable price
(2) We can process different finished products according to your requirements
(3) High production capacity will shorten your waiting time
(4) Accepting buyer's specification
(5) Experienced R&D department
For more details about our products, please contact our sales for more information. Thank you for visiting
